4800LA/4800RA/4800DA: Electro-Hydraulic Actuators
The M-MAC series is the electro-hydraulic actuator which combines the power of hydraulics, the reliability of solid state electronics and the flexibility of user-configured control.
It features a compact design, and all the major components of a hydraulic system are packaged with a stand alone modular actuator, which provides excellent value. Simply install, then hook up to the appropriate electric power source. M-MAC series also allows for precise positioning independent of load variation. The motor only operates when motion is required and it achieves the power consumption. The dedicated controller allows the user to set the desired actuator operation parameters.
Specifications
| Type | Linear Stem Motion Type | Rotary Stem Motion Type | Crank Arm Motion Type |
|---|---|---|---|

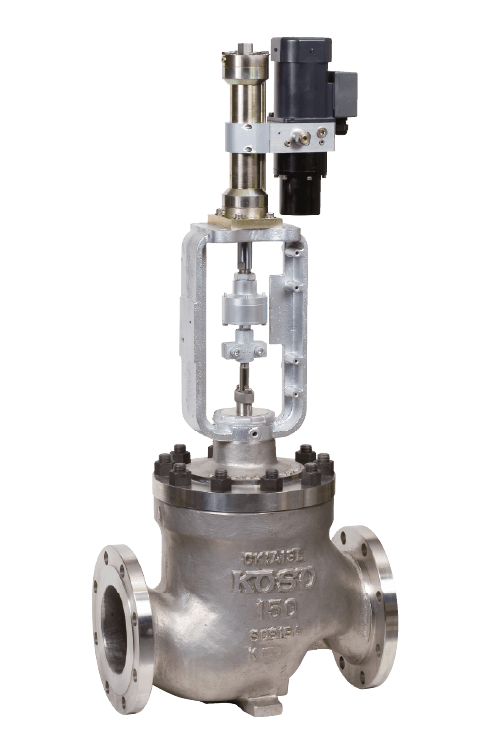

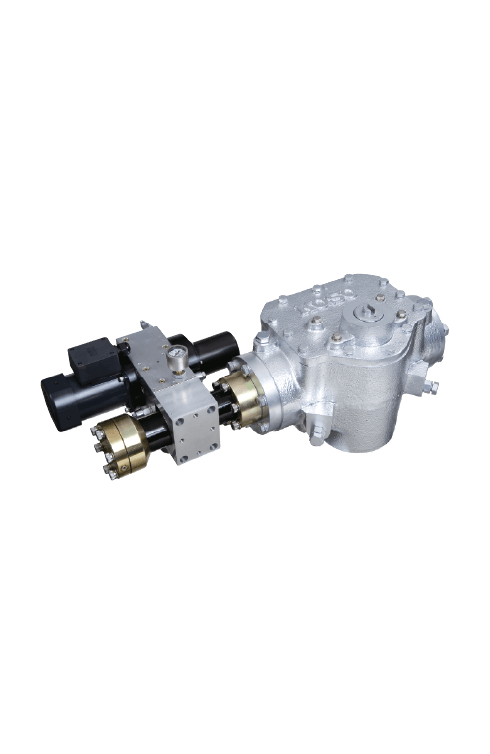

| 4800LA | 4800RA | 4800DA | |
| Max. output | 110000 N | 20000 N·m | 10000 N·m |
| Power source | 100/200V AC 50/60 HZ Options: 200 to 240V AC, 380 to 440V AC 50/60HZ |
||
| Max. stroke/angle | 150mm | 90° | |
| Control signal | 4 to 20mA DC, 1 to 5V DC, Two position, Manual(up/down push-button) | ||
| Environment temp. | Actuator: -10 to +60°C CONTOROL ENCLOSURE; -10 to +50°C |
||
| Positioning accuracy | < 0.1% of full stroke | ||
| Enclosure type | Protection class IP65 or equivalent | ||
| Options | Manual Handpump, Accumulator | ||
