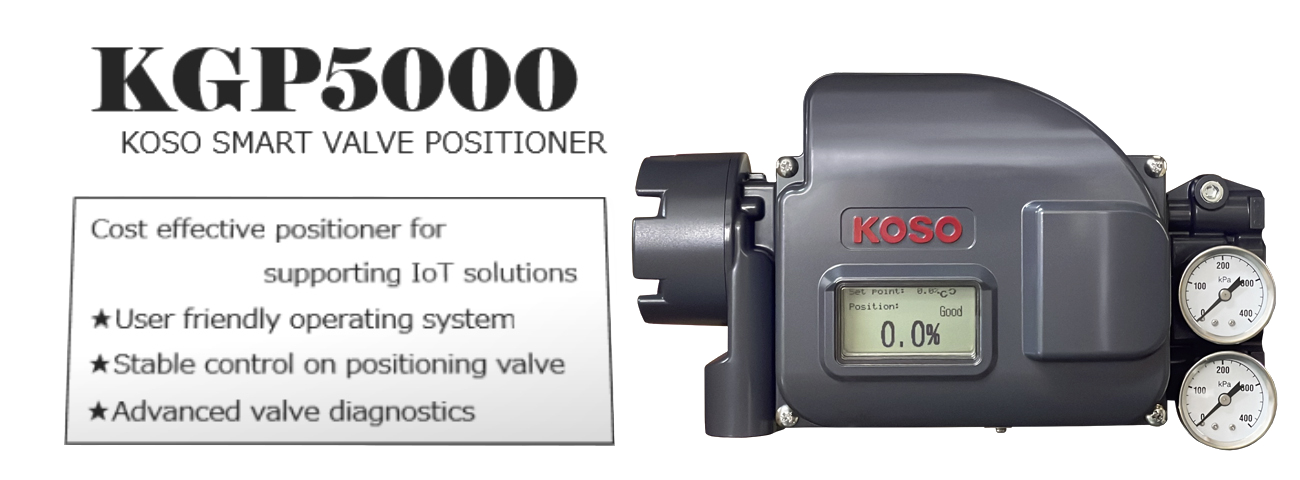

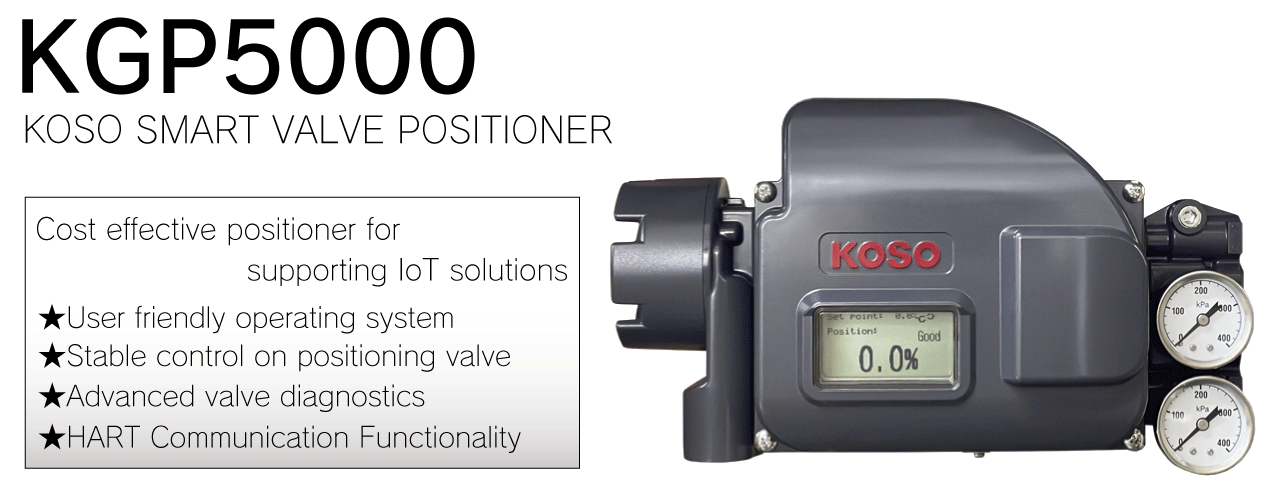

KGP5000: Smart Valve Positioner

KGP5000 series smart valve positioner is a control device mounted on the pneumatic actuator for control valve, which positions a control valve according to a 4 to 20mA electric input signal from a higher-level control system or a control device.

Position feedback control system which receives feedback signal mapped to the desired valve travel and compares both input signal and feedback signal enables accurate positioning of a control valve.

In addition, it is possible to use this positioner in order to operate various types of pneumatic actuator such as single and double acting, linear and rotary motion actuators.

Furthermore, the positioner utilizing digital techniques performs the functions of advanced PID controller, local user interface using LCD, diagnostics utilizing sensing techniques with potentiometers and internal pressure sensors.

Such features enable an easy installation and calibration, an effective monitoring and an efficient process management relevant to operations and maintenance.

FEATURES

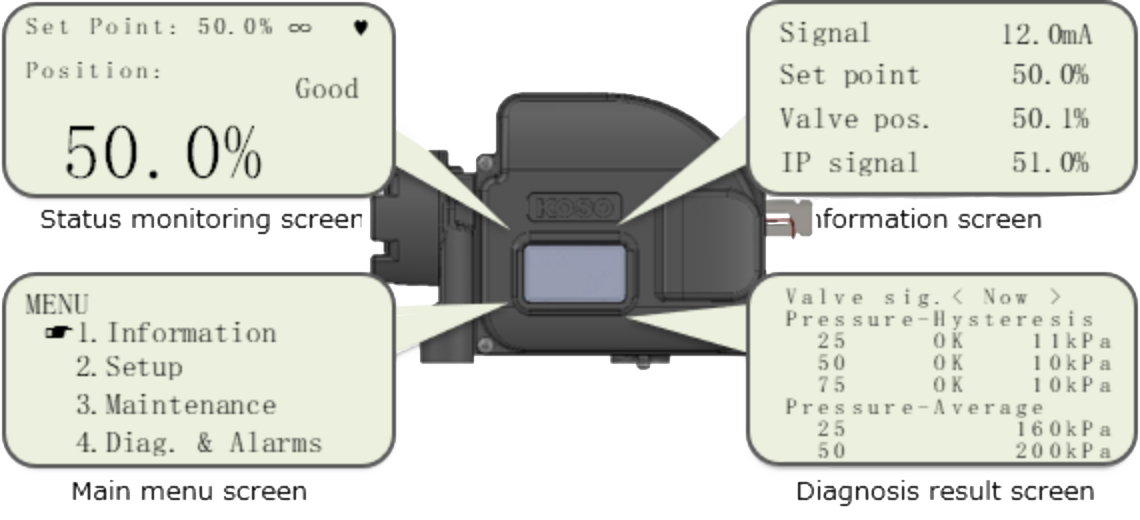

Large-screen LCD ＆ easy configuration by 'Full autotune'
・ Local user interface with large graphic LCD by itself enables performing all the operations such as setup, adjustment, status monitoring, execution of diagnostics, etc.
・ The function of 'full autotune' can set automatically zero & span point, and select optimal PID control parameters by automatic tuning.

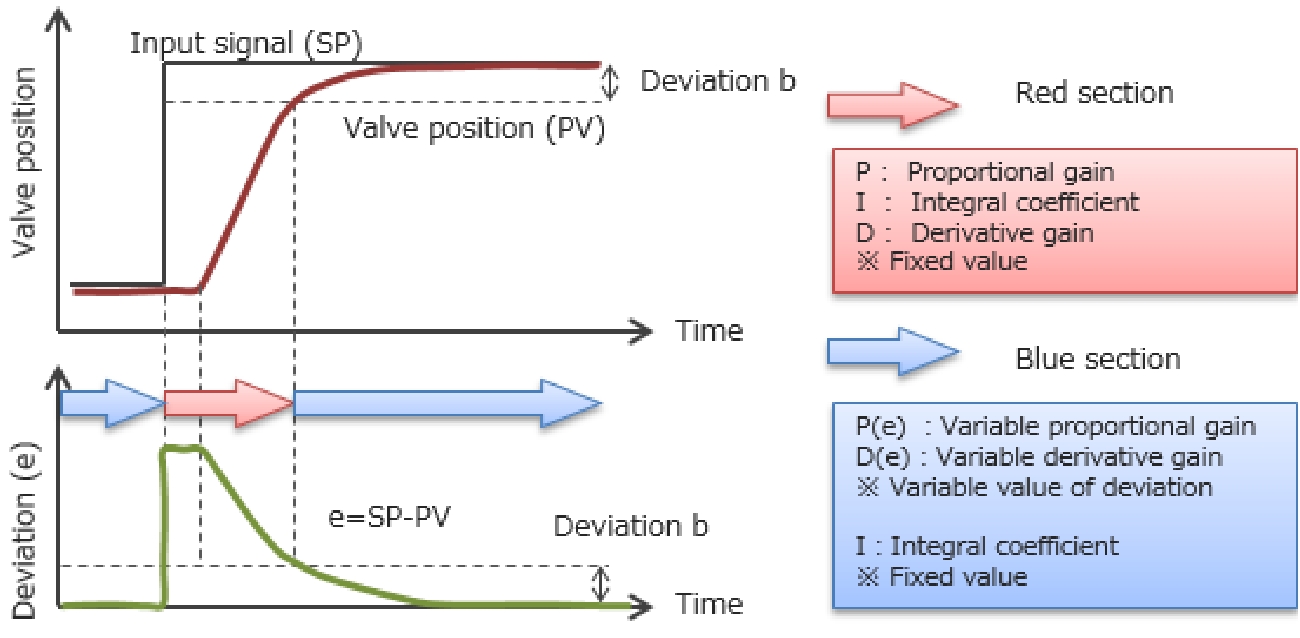

Stable valve control using advanced control algorithm
・ Advanced PID control selects suitable parameters according to deviation size, direction.

・ Preset values of PID parameters are provided suitable for linear or rotary actuators.

Diagnostics and alarm functions for maintenance cost reduction
・ Online valve diagnostics enables the exchange from breakdown maintenance to preventive maintenance through status monitoring.

Total stroke
Exposure time to
high temperature
Control time of low travel
Number of times
a direction is reversed
Exposure time to
low temperature
Partial stroke test

・ Offline diagnostics checks control valve condition through pressure sensors.

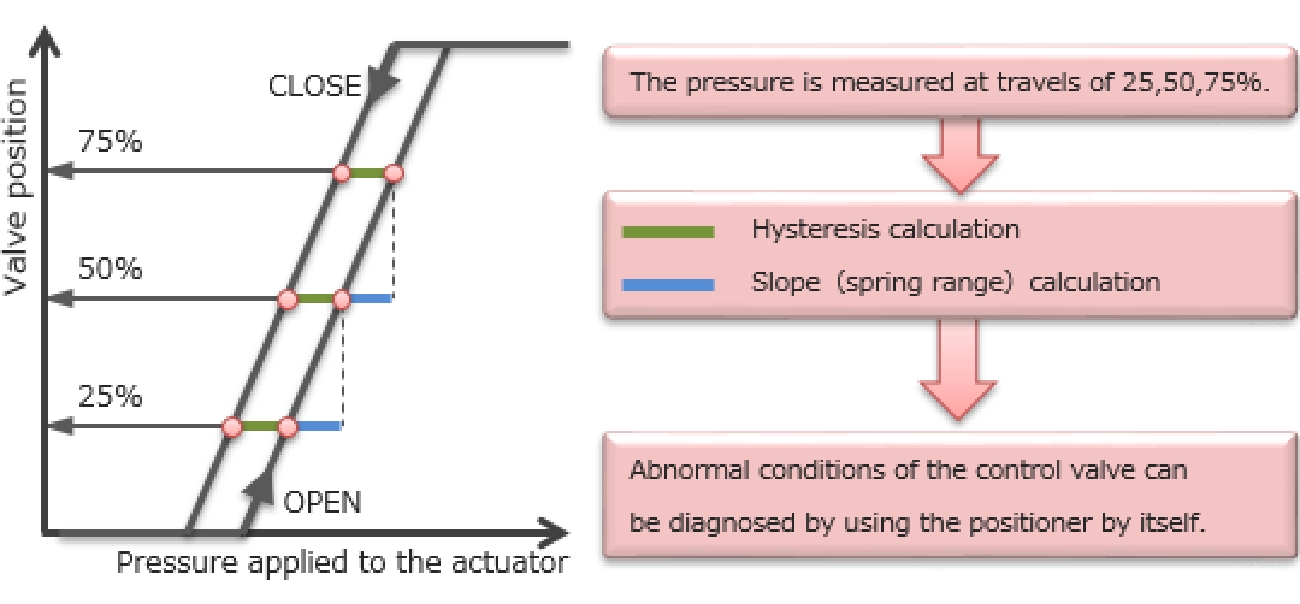

The concept of valve diagnostics using simplified valve signatures

Diagnostics and alarm functions for maintenance cost reduction

All-in-one design for inventory-related troublesome reduction
・ Latest digital communication "HART7" compliant
・ Built-in position transmitter function
・ Applicable to both single and double acting actuator only through the switching between single and double mode on pilot relay

Attachment to several kinds and types of actuators

Linear actuator

Rotary actuator

KOSO 5300LA series

SPECIFICATIONS

Input signal	4~20mADC Split range available	Model KGP5000 Compliance voltage 8.6VDC@20mA (Input impedance 430Ohm) (Electronics Version : 1.0.0 and more)
Input signal	4~20mADC Split range available	Model KGP5003 Compliance voltage 9.6VDC@20mA (Input impedance 480Ohm) (Electronics Version : 1.0.0 and more)
Characteristics curve	Linear / EQ / QO / User custom setup (19 points)
Position transmitter output *Model KGP5003 only	4~20mADC	Power supply 17~31VDC Alarm output *according to NAMUR043
Available actuators	Linear / Rotary / actuators according to IEC60534-6 VDI/VDE3845
Travel range	Linear	12~250mm *Strokes above 250mm with special kits
Travel range	Rotary	40~100deg
Action	Single / Double　*Pilot relay are available on direct acting only
Supply pressure	140~800kPa
Enclosure	Housing material Standard coating material Heavy duty coating material (option) Protection code Pneumatic connection Electrical connection Mounting threads Explosion protection type		Aluminum die-casting alloy Acrylic resin paint Polyurethane resin paint IP66 (Common structure) Rc1/4 or 1/4NPT G1/2 , 1/2NPT or M20x1.5 4xM8, 4xM6 Flameproof enclosure
Weight	3.0kg(without pressure gauge block), 3.3kg(with pressure gauge block)
Operating temperature range	Dust / water proof(Non explosion protection) type TIIS flameproof type CCC flameproof type NEPSI flameproof type KOSHA flameproof type IECEx flameproof type ATEX flameproof type EAC flameproof type CNS flameproof type ECAS flameproof type LCD		-40~80degC -20~60degC -40~70degC -40~70degC -20~60degC -40~70degC -40~70degC -40~70degC -40~70degC -40~70degC -20~70degC
Operating humidity range	5~95%R.H.(non-condensed)
Air consumption	Single acting type	6Nl/min or less@140kPa, 9Nl/min or less@300kPa *at 50% position of full travel
Air consumption	Double acting type	16Nl/min or less@400kPa, 20Nl/min or less@550kPa *at balance pressure
Maximum output capacity	165Nl/min@140kPa, 290Nl/min@300kPa 370Nl/min@400kPa, 500Nl/min@550kPa
Performance		Position control	Position transmitter output
	Linearity Terminal-based LIN : Independent LIN :	±1.0%F.S. (±0.85%F.S.)	±0.5%F.S. (±0.7%F.S.)
	Hysteresis	0.7％F.S.	0.3％F.S.
Approvals	Dust / water proof Protection code	IP66 (No. AK 50363732 0001,AK 50448750 0001)
	Explosion proof TIIS CCC NEPSI KOSHA IECEx ATEX EAC CNS ECAS	Ex d IIC T6 Gb (No. TC22443X) Ex db IIC T6 Gb (No. 2020322307000438) Ex db IIC T6 Gb (No. GYJ23.1345X) Ex d IIC T6 (No. 17-AV4BO-0350X) Ex db IIC T6 Gb (No. IECEx DEK 17.0037X) II 2 G Ex db IIC T6 Gb (No. DEKRA 17ATEX0076 X) 1Ex db IIC T6 Gb (No. ЕАЭС RU C-JP.AД07.В.04614/22) Ex db IIC T6 Gb (No. TD0401AE, TD04010D) Ex db IIC T6 Gb (No. 25-01-135840/E25-01-141073_NB0002)
	HART communication *Model KGP5003 only	HART7
	CE marking	EMC directive(2014/30/EU) RoHS directive(2011/65/EU)+(EU)2015/863
